7308900000
Column, Beam, Purlin, Bracing etc

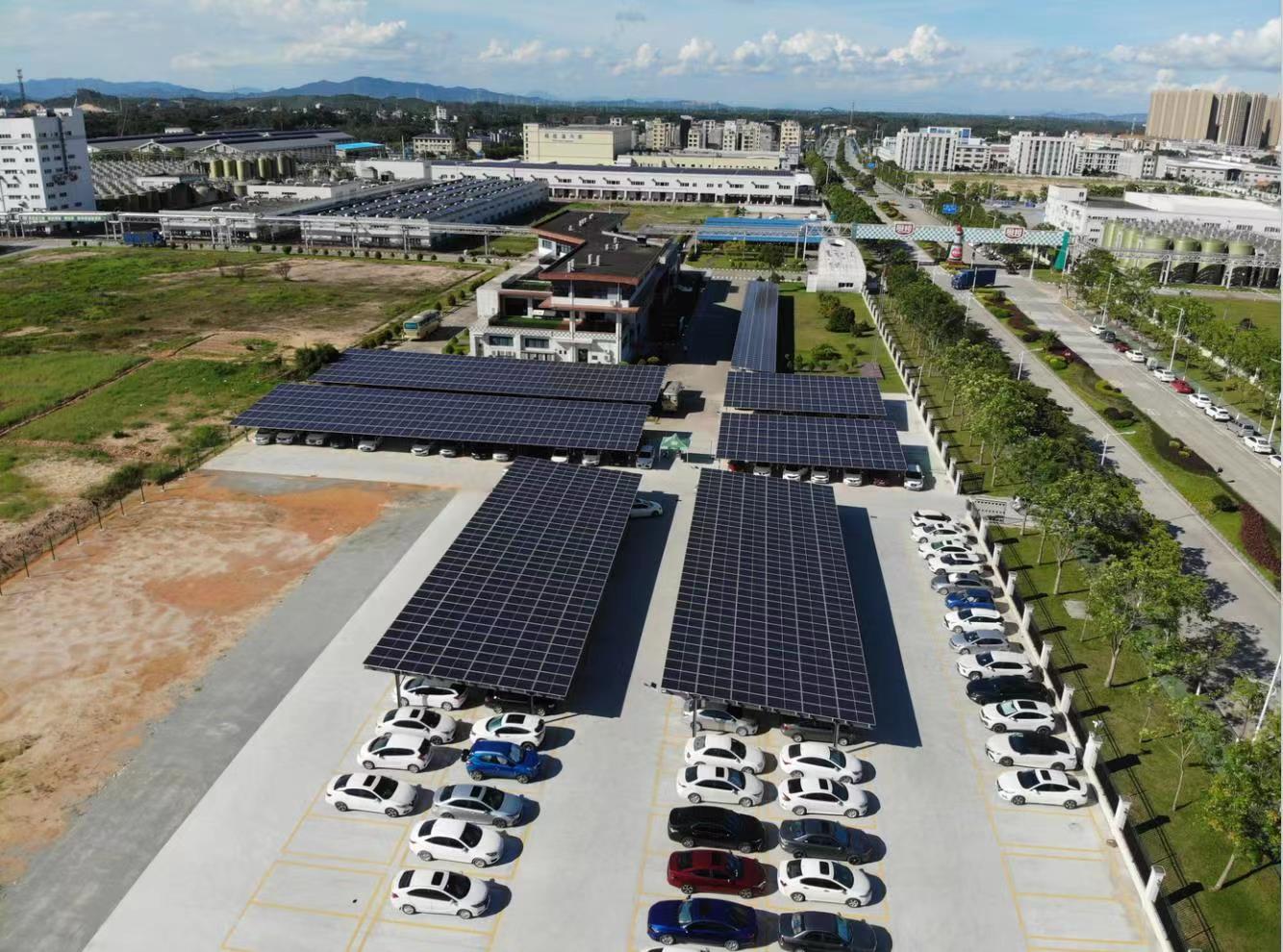

1.Metal Carport&Solar Shed Product Information:
All the prefabricated buildings can be designed to meet the customized wind load, snow load, and seismic requirements for different countries and specific areas. A steel building system means all the steel structure frame components are cut, welded, and drilled at our factory. All of them are well prepared and ready for bolt-together assembly at the construction site.
The Project Aera: 6561㎡ Weight: 186 tons
Wind Resistance: 110km/h Anti Seismic: 8 grade
Floor Dead load:65kg/㎡ Floor Live Load:50kg/㎡

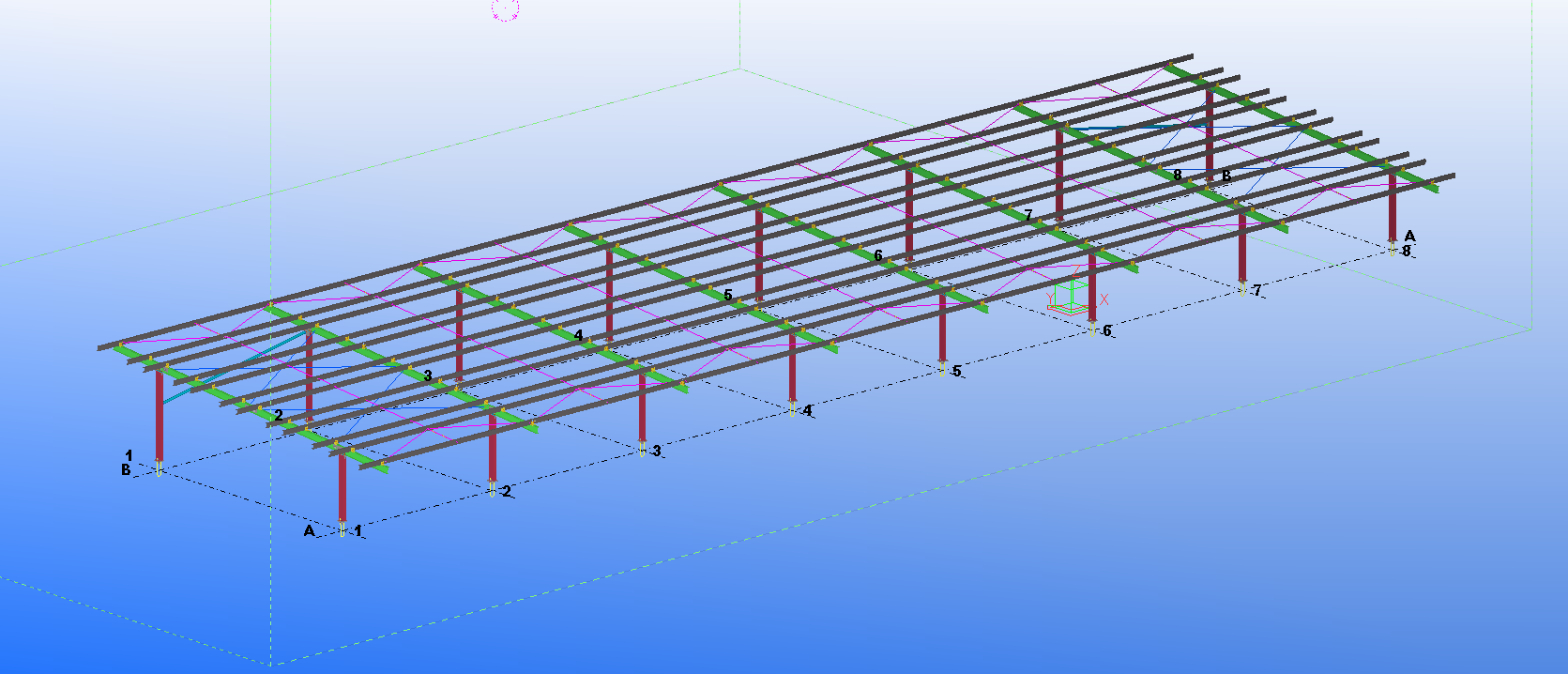

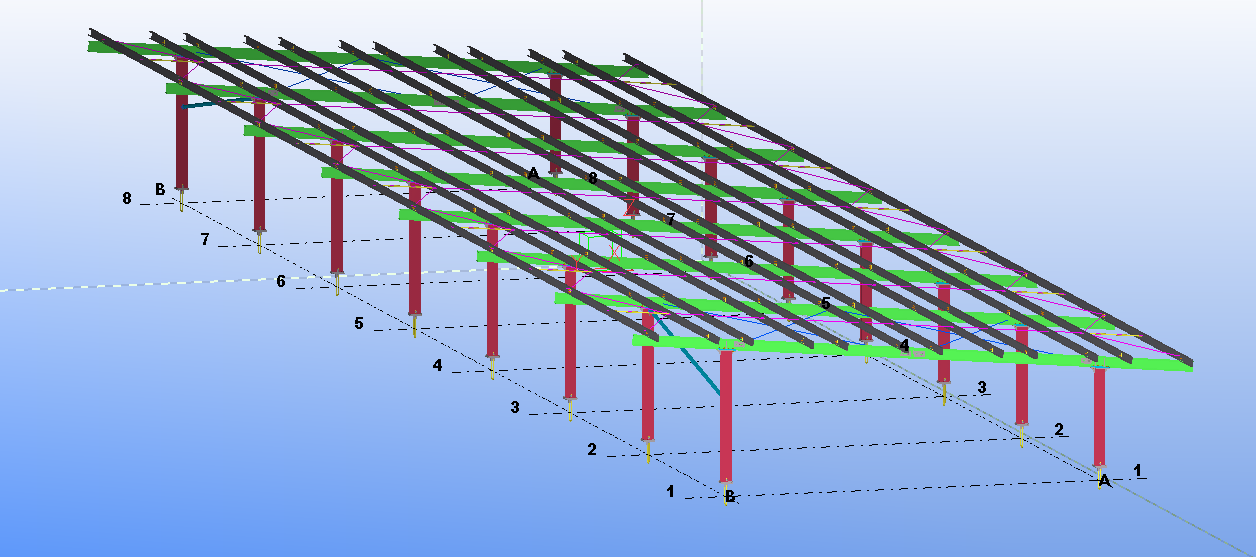

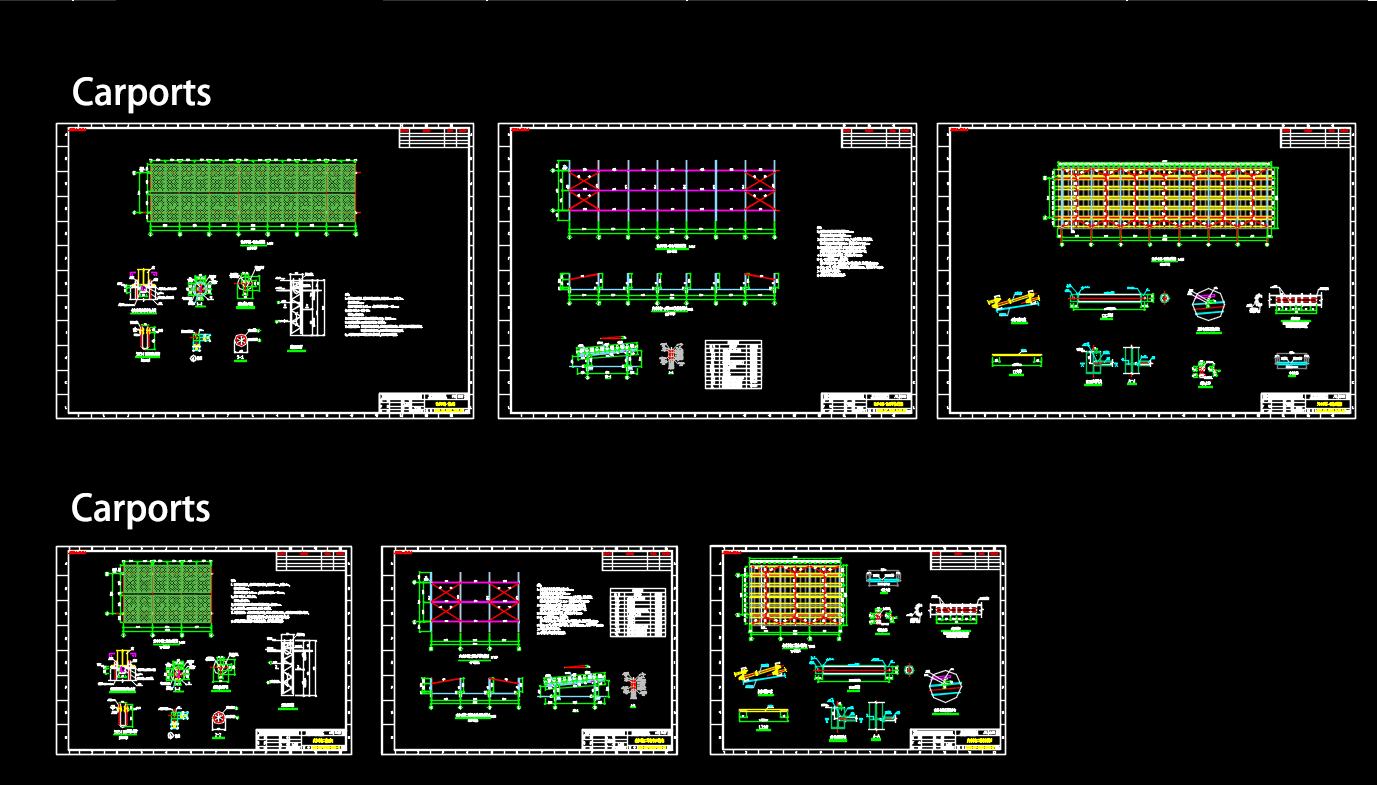

2.Metal Carport&Solar Shed Planing & Drawing

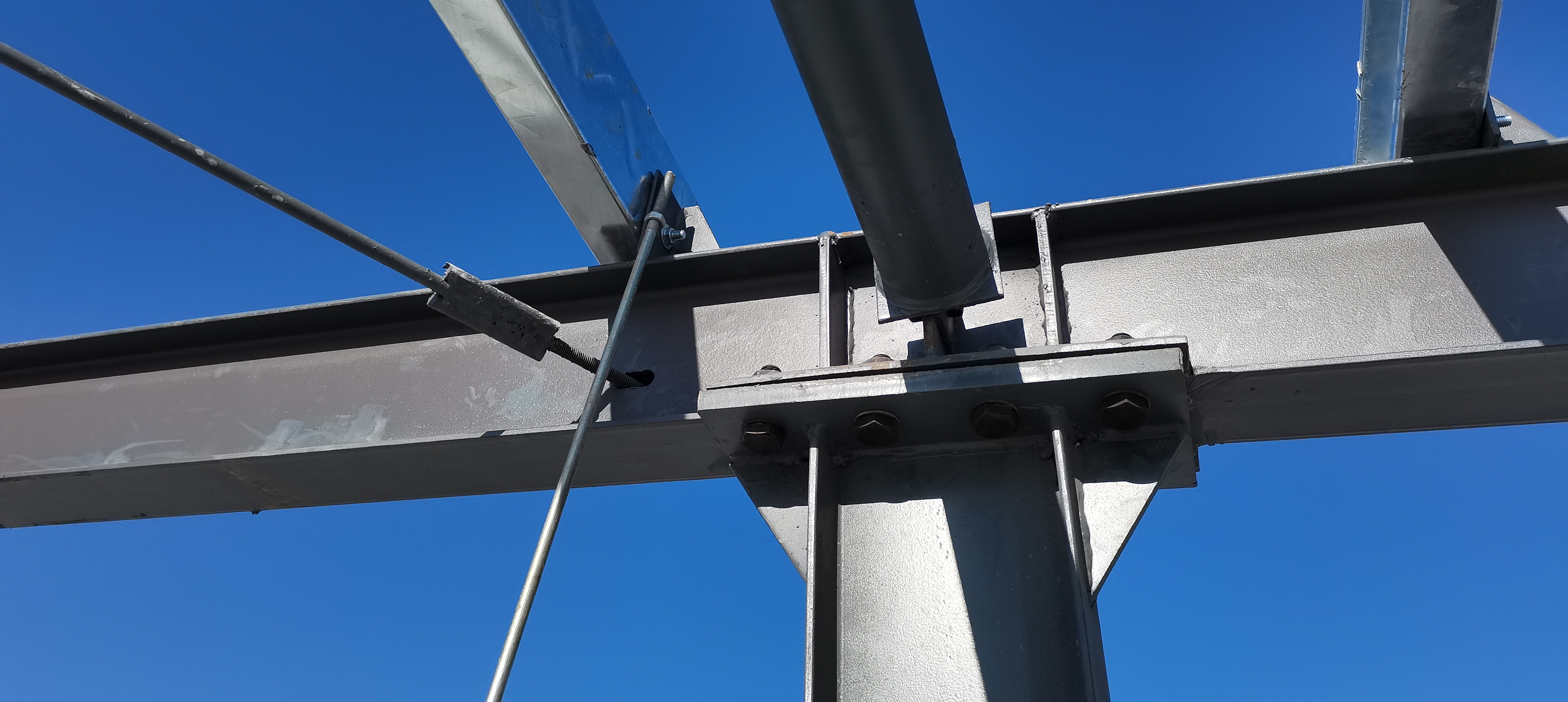

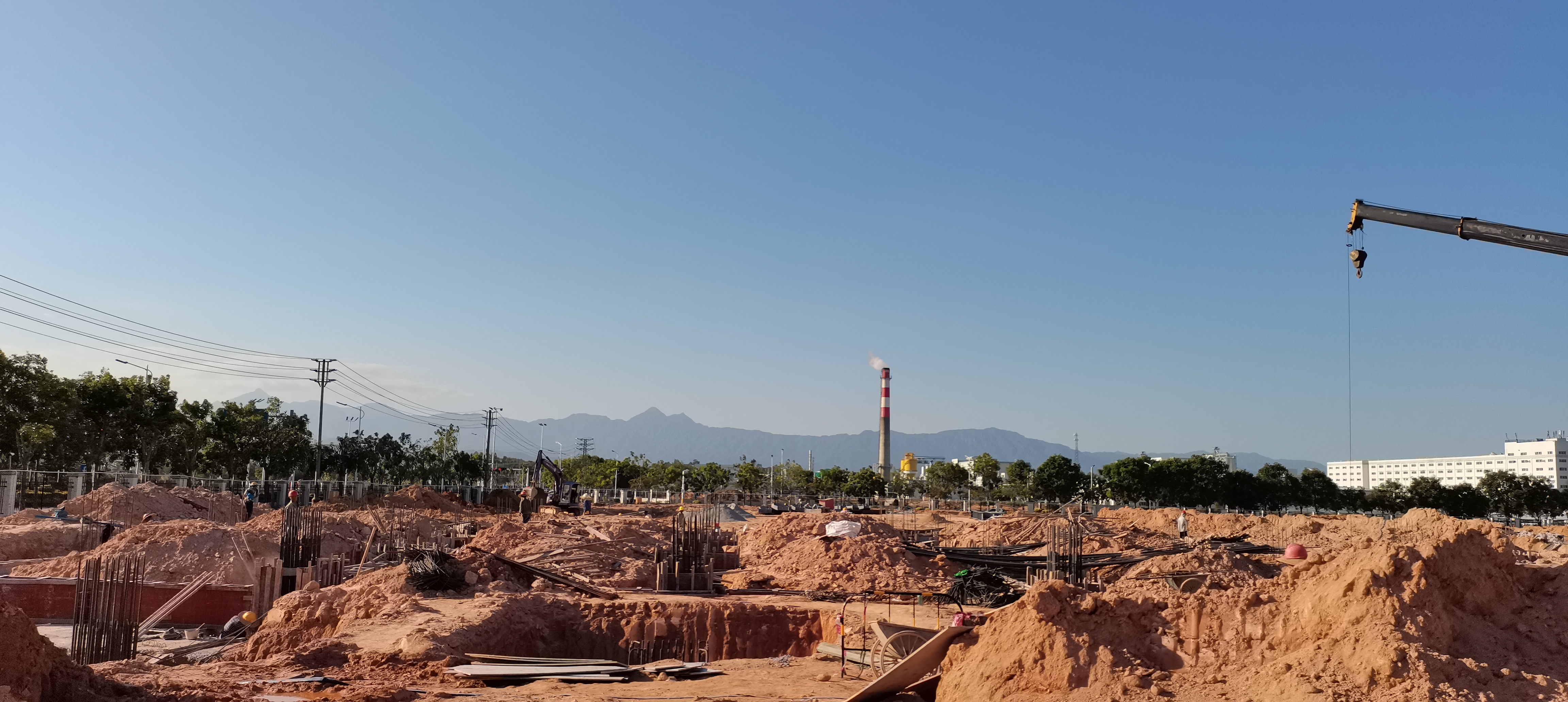

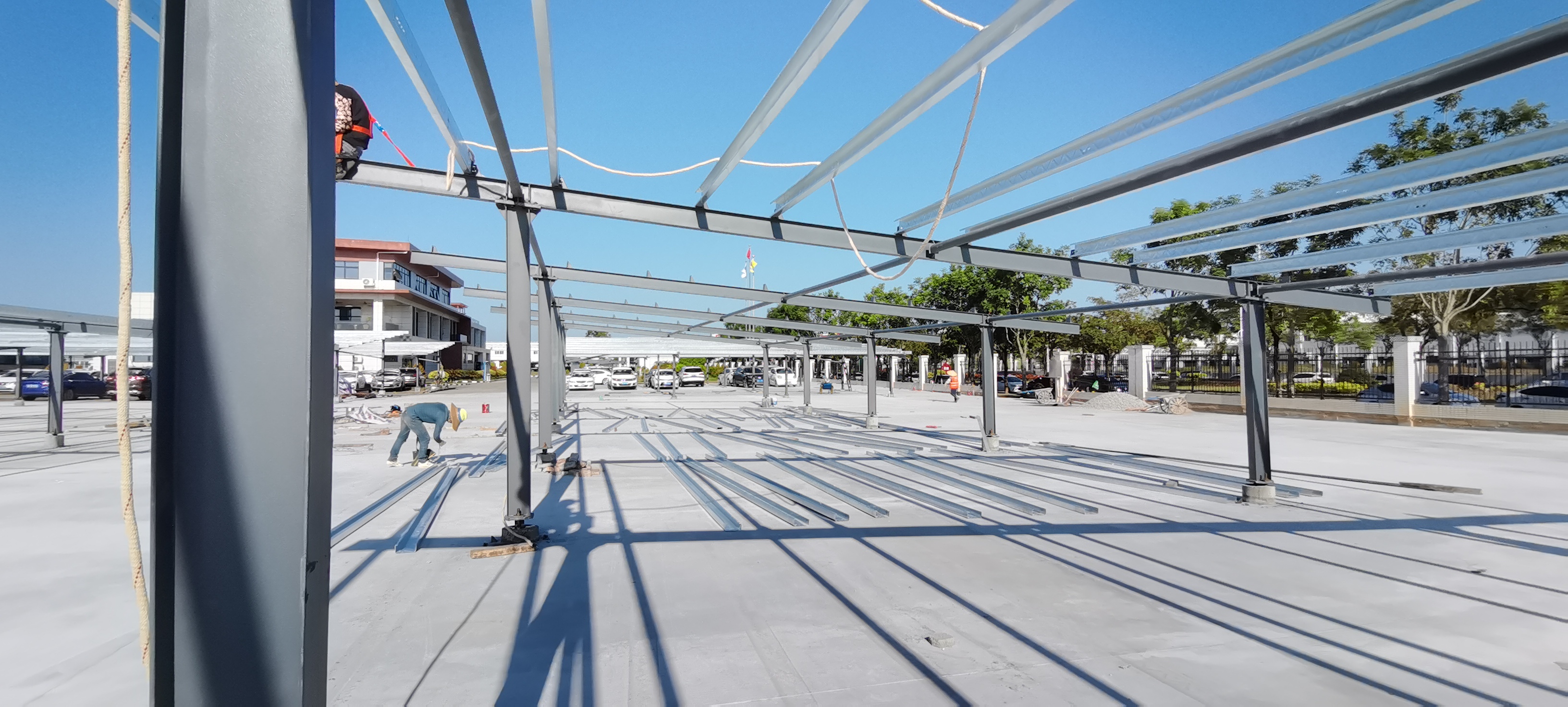

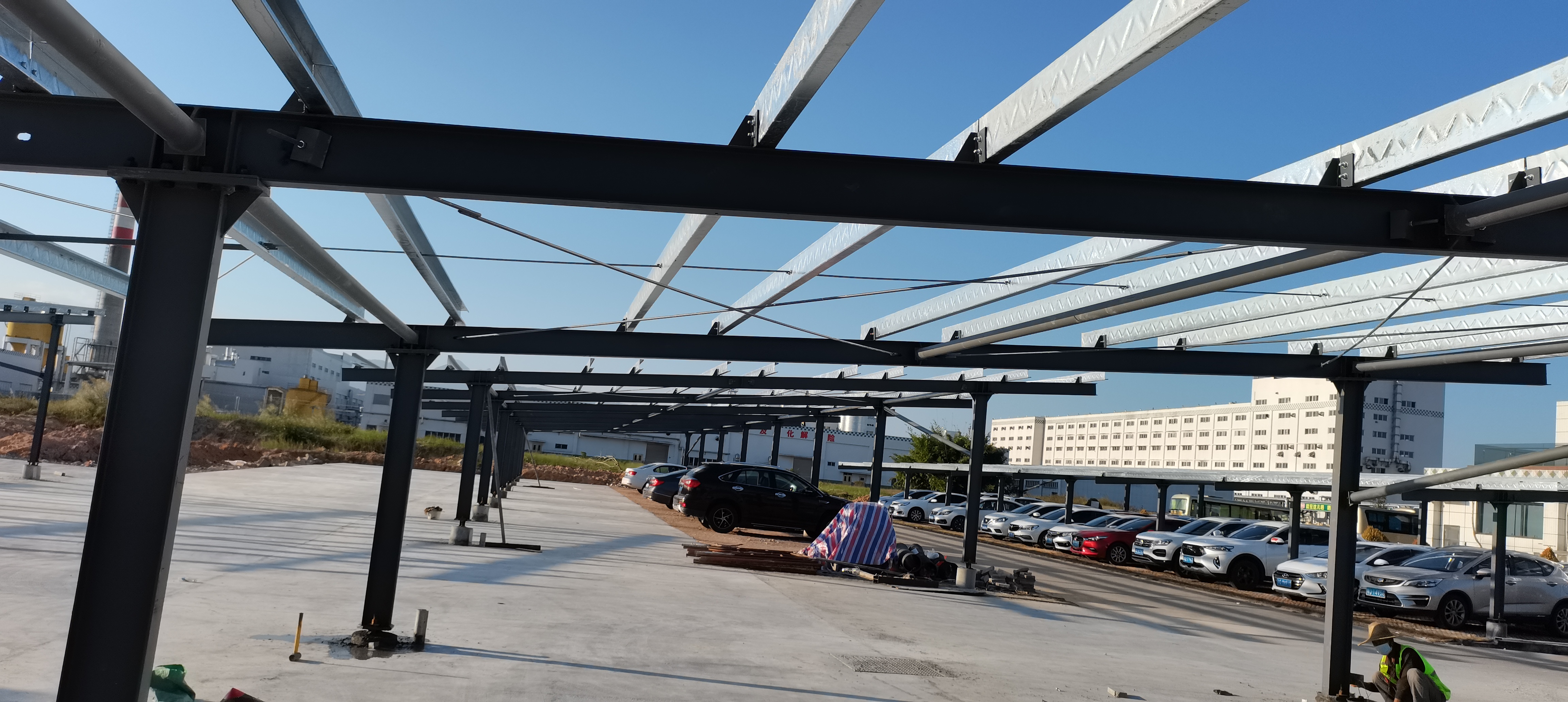

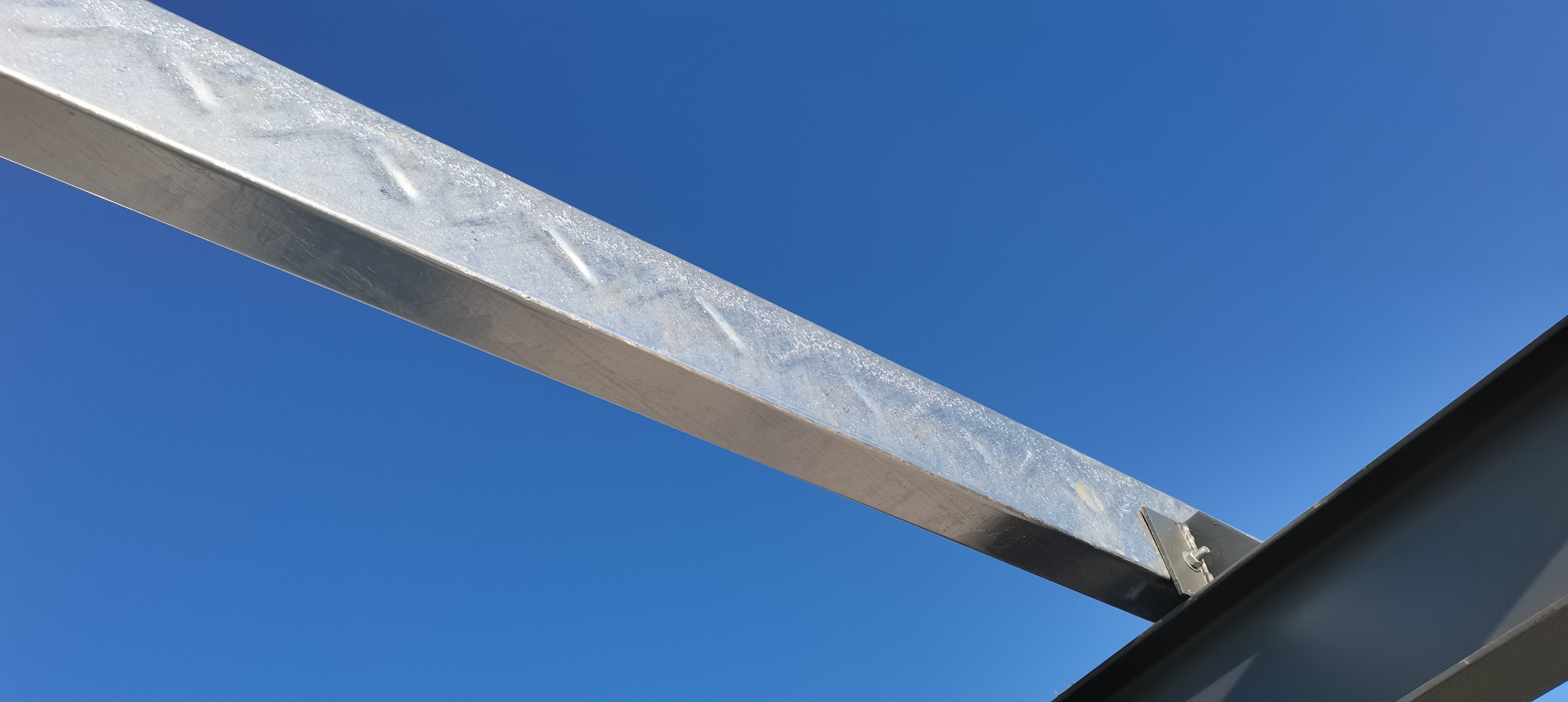

3.Metal Carport&Solar Shed Installation Show:
Requirement: The Chubang roof distributed photovoltaic power generation project of Yangjiang Jiaoyang New Energy Co., Ltd. has very high requirements on the processing technology of the steel structure: the anti-corrosion paint is iron red epoxy primer + anti-corrosion paint + varnish, and the coating thickness is above 200um; Purlins, tie rods, supports and braces are all made of hot-dip galvanized materials, with a zinc layer thickness of more than 160um; embedded parts and high-strength bolts are of class 10.9 or more, and galvanized bolts are hot-dip galvanized, with a zinc layer thickness of more than 60um.
Solution:Completely follow the process requirements put forward by the owner,and successfully complete the project within the specified time.
4.About Guangdong Liyou Steel Structure.
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
5.Metal Carport&Solar Shed Product Basic Info:
Place of Origin: | Type: |
Foshan, China (Mainland) | High-Strength shed |
Application: | |
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing etc. | |
Standard: | Carbon Structural Steel: |
GB | Q355, Q235B |
Features: | Wind Resistance: |
Waterproof, Fireproof, Earthquake Resistance | 100km/H |
Steel Structure Fabrication: | Life Span: |
Sanding(2.5)Painting | Main Steel Structure 50 Years |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Steel structure parking lot |
6.Metal Carport&Solar Shed Building Material List:
| Front Stand Column | H Steel | HFW200*100*4.5*6 |
| End Plate | '-170*380*20 | |
| High Strength Rebar | -90*135*10 | |
| Rear Stand Column | H Steel | HN200*100*5.5*8 |
| End Plate | '-170*380*20 | |
| High Strength Rebar | -90*135*10 | |
| Inclined beam | H Steel | HN200*100*5.5*8 |
| High Strength Rebar | -50*200*9 | |
Purlin1 | C Steel | C150*60*20*2.0 |
| Purlin2 | C Steel | C150*60*20*2.0 |
| Purlin3 | C Steel | C150*60*20*2.0 |
| Purlin4 | C Steel | C150*60*20*2.0 |
| Purlin connecting | C Steel | C146*52*4 |
| Purlin Joe | Angle steel | L110*70*7.0 |
| Tie Bar 1GXG | Round tube | φ83*3 |
| End Plate1 | φ100*5 | |
| End Plate2 | -50*100*5 | |
| Horizontal Tie rod | Round Steel | M14 |
Steel Car Parking Characteristics
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
What We Do?
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Payment Terms:
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market:
Products have been exported to North America, the Middle East, Africa, Asia, and other countries and regions.
Q 1: What should be prepare for the site before start to built?
At the very least, you need concrete piers for the columns to sit upon. Most people pour a full foundation, but if you are using the building on a farm or ranch and plan to have dirt, gravel, or sawdust floors, a pier system may be preferable. In these situations, a popular option is to combine piers with concrete footing around the perimeter of steel building.
Q2. Do you have a recommended foundation and associated drawing?
Yes, we will provide foundation drawing and installation drawing for you after shipment. But the foundation drawing is just for reference because land and soil are diverse in different area.
Q3. Can add a brick wall to my steel building?
Yes, you can. For combined durability and beauty there is nothing like adding brick finishes to walls of your steel building. You receive the benefits of a hard wall, such as fire resistance, along with moisture resistance of a cavity wall.
Q4. Why does wind speed affect prices?
For most of the steel structure buildings, we design wind speed is about 110km/h. But for some strong wind countries,110km/h is not enough, like the Philippines and Mauritius 150~280km/h wind speed need to enlarge the beam and column, that will use more steel on it then increase the price a lot.
