| Quantity: | |
|---|---|
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Steel Steel Frame Warehouse |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc. | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Size: | Color: |
Up to Customer's Requirement | Graywhite, Blue, Red, etc.. |
Roof & Wall Material: | Door: |
Steel Sheet or Sandwich Panel | Rolling / Sliding Door |
Window: | Technology: |
Aluminum Alloy Window | Welded steel, Hot Rolled Steel |

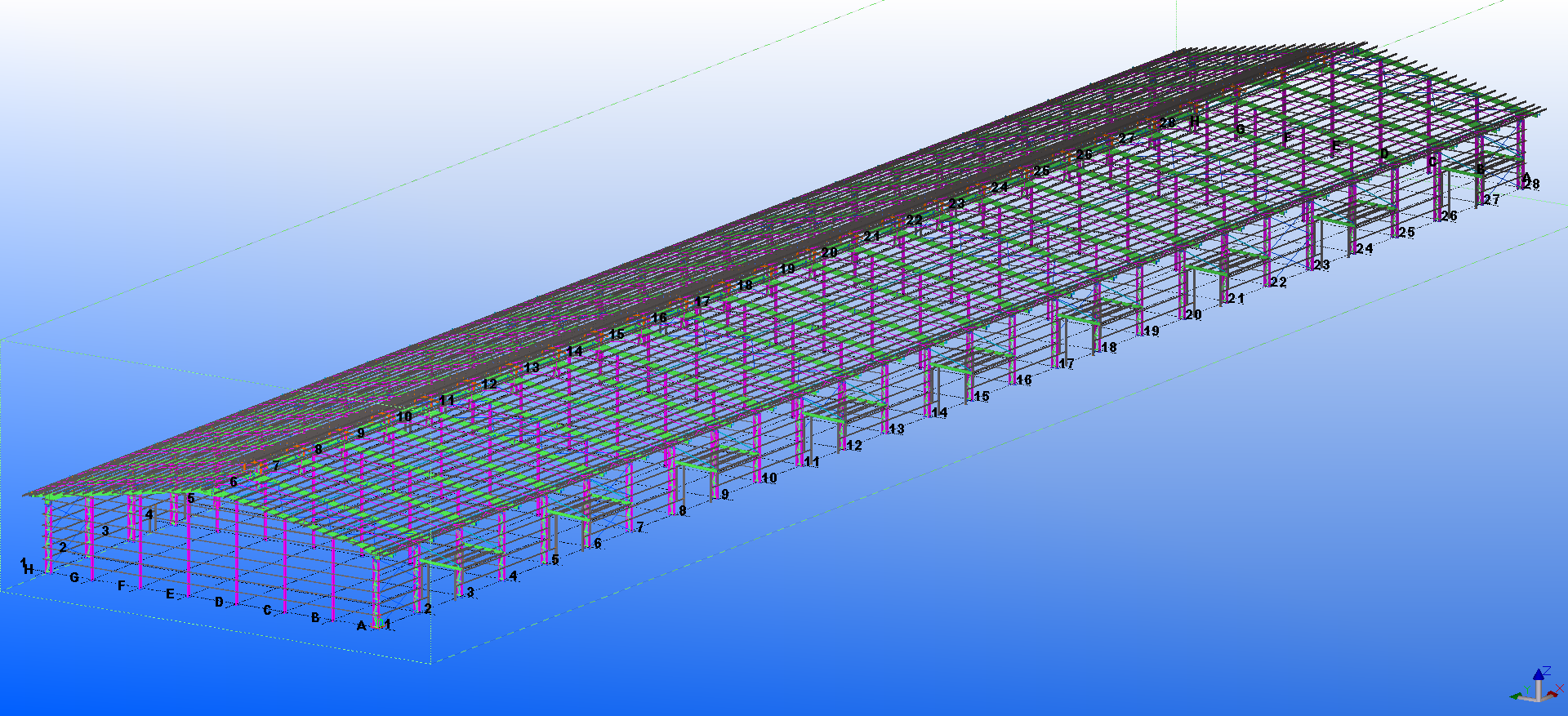

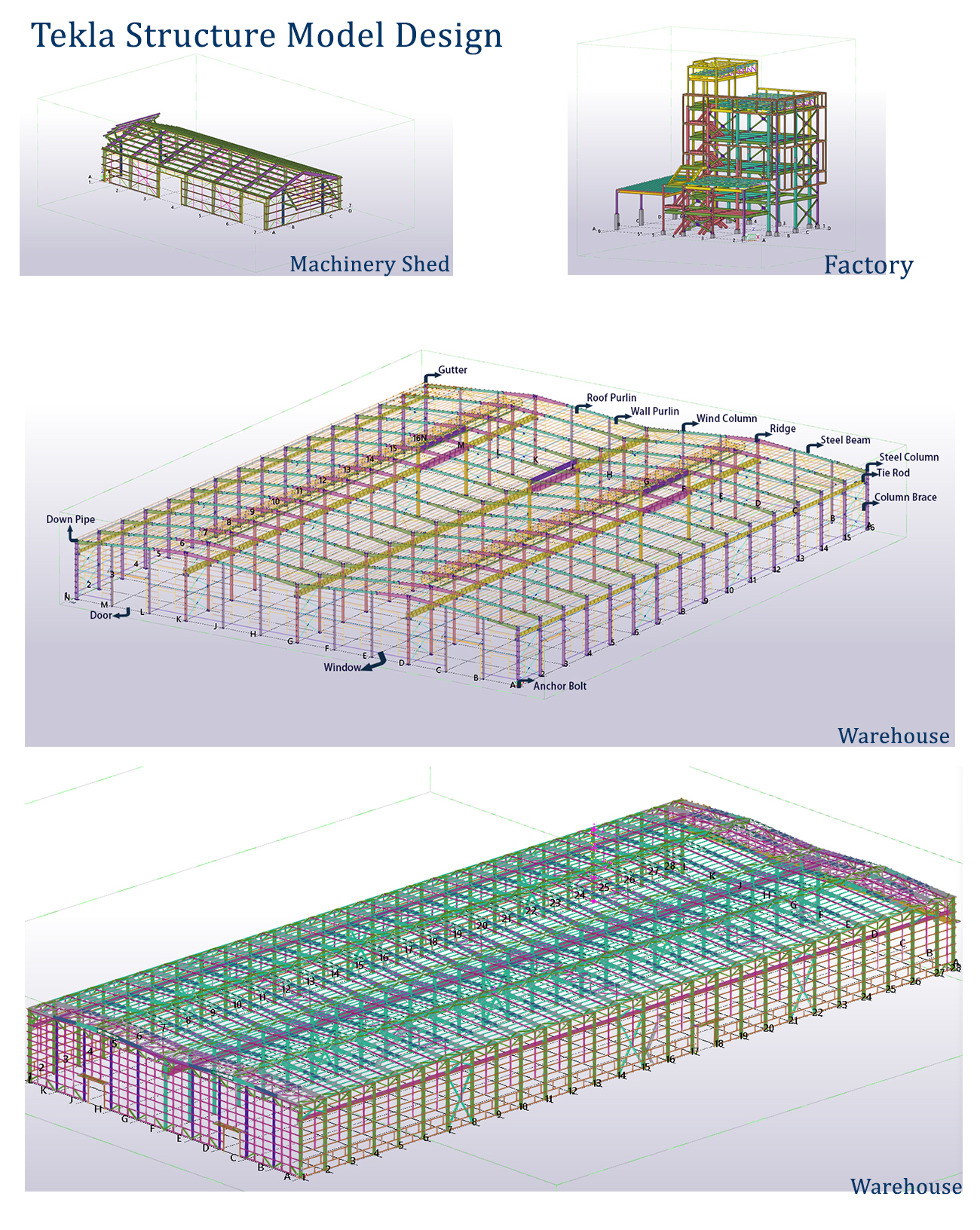

Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Prefabricated Steel Structure Warehouse |
| Components | Specification |
| Anchor bolt | M24 |
| High strength bolt | M20，10.9S |
| Common bolt | M20 |
| Turnbuckle | M20 |
| Galvanized bolt | M12 |
| Bracing | ∅12 |
| Steel column(Q345B) | H(450-850)*250*10*12 |
| Wind column(Q345B) | H350*200*8*10 |
| Roof truss beam(Q345B) | H(650-400)*220*8*10 H400*220*10*10 |
| Tid rod（Q235B） | ∅114*3.0 |
| Horizontal bracing | ∅20 steel bar |
| Column bracing | ∅20 steel bar |
| Roof purlin(galvanized) | C160*50*20*2.0 |
| Wall purlin(galvanized) | C160*50*20*2.0 |
| Connecting plate | 6mm-25mm steel sheet |
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q: What should you provide before quotation?
A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.
Q: What accessories do we provide for customized steel buildings?
A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.
Q: Can the steel building be installed by yourself?
A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.
Q: What should be prepared for the site before installation?
A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.
Q: Do we have a recommended foundation and associated drawing?
A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
